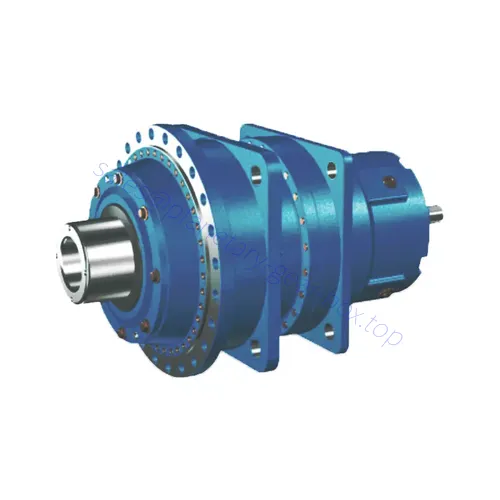

Series EPN5: 5 Stage Planetary Gearbox

Output speed 0.425‐445 r/min
Ratio range 543.27-6110.81
Input power 0.25‐200 KW
Mounting position B5,V1,V3,B51 …
Mounting dimensions Standard /Custom
Reduction ratio i >3
Permit torque range ≤ 540000N. M
Category:

Description

Series EPN5: 5 Stage Planetary Gearbox

Our 5-stage planetary gearbox (EPN5 series) is a high-precision, high-quality motion control device that complies with ISO 9001:2008, SGS, and CE standards. You can choose from our wide range of EPN series gearboxes to suit your industrial application needs.
All of our in-line 5-stage planetary gearboxes have a male and female configuration. Reasons for its flexibility and adaptability. Each planetary gearbox is designed to withstand strong radial and axial loads on the output shaft.
We are the only supplier of inline planetary gearboxes with a modular design. It enables us to produce custom designs for all clients’ specific needs.
In addition, with rigid and heavy-duty bearings, we can achieve the required efficiency of planetary gearboxes; and achieve proportional torque distribution. In addition, each 5-stage planetary gearbox is case hardened for reliability and extended service life.
We’ll help you choose the best design to optimize your operation with a wide range of output speeds and torques. You don’t have to go through the tedious process of using a planetary gear calculator.

Key Features
  • Modular design, combined according to customer requirement
  • Heavy bearing, Design for heavy-duty Application
  • Hardened gearing, long life with high reliability
  • Series models and ratio designed, wide range selection
  • Low-speed shaft design
  • Nodular iron housing, high strength, and impact resistance application
Torque range 1000 … 540000 Nm Input IEC Flange
Mechanical rating (n1 = 1500 min-1) up to 200kW Electric motor
Gear ratios 543.27 … 6110.81 Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions Applicable AC motors Integral motors and brake motors
Right angle (with bevel gear set) IEC-normalized motors and brake motors
Mounting type Foot Single and dual-speed motors
Flange mounted Main brake features DC and AC supply
Torque-arm Faster brake reaction through an electronically controlled rectifier
Output shaft options Solid shaft Main motor options Thermistors and thermostat sensors
Splined shaft Independent forced cooling
Female splined shaft Line driver and push-pull incremental encoder
Hollow shaft with shrink disc

EPN series planetary gearbox torque sheet with models

Gear unit size 200 201 240 241 280 281 353/354 355 400 401
Normal output torque
T2N[Nm]
1500 2000 3500 4000 4300 7300 13000 16000 20000 23000
Gear unit size 428 429 445 446 510 542 543 695 810 885
Normal output torque
T2N[Nm]
26000 30000 32000 43000 63000 75000 100000 150000 300000 420000
